Hydraulic Press Brake Machine: Advanced Precision Bending for Industrial Metal Fabrication

Name: Hydraulic Press Brake Machine
SKU: 5
Rating: 4.5 (50 reviews)

The Hydraulic Press Brake Machine is designed to deliver exceptional precision and efficiency in metal bending tasks.

Utilizing advanced hydraulic technology, it ensures consistent pressure and smooth operations, making it ideal for handling a wide range of sheet metal thicknesses.

This machine is perfect for industries like automotive, aerospace, and metal fabrication, excelling in applications such as forming, folding, and complex bending tasks.

Its robust construction provides durability, while the programmable controls and enhanced safety features offer user convenience and operational security.

With minimal maintenance and high productivity, the Hydraulic Press Brake Machine is the ultimate solution for modern industrial applications.

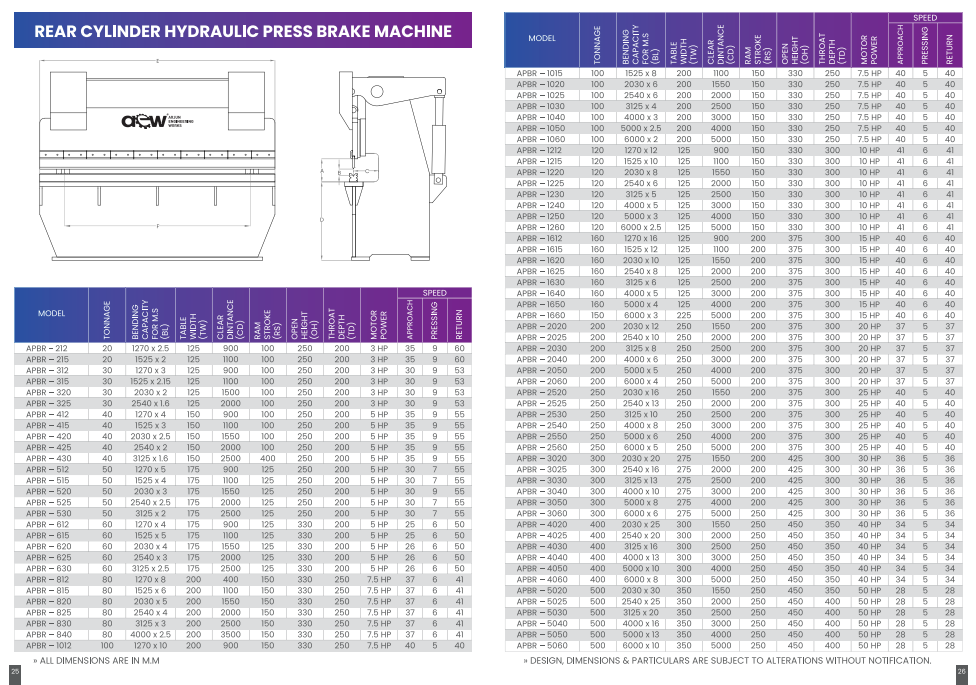

Product Specification

STANDARD FEATURES

Ram travel repeatable within ±0.03 mm for consistent bends for interchangeable output.
Ram travel is referenced from the bed to avoid side frame deflection affecting stroke accuracy.
Rugged structure of ultra-tested IS 2062 plates, rigidity conforming to international standards.
Hydraulic, Electricals of internationally reputed brands for consistent performance and reliable operation.
Front operated manually back gauge front sheet supports with scale.
Most hydraulic parts rated for 310 bar, but working pressure 160 bar for long life, reliable operation.
Ram guides of 4-piece design with replaceable liners.
Pivots with permanently lubricated by central hand pump.

STANDARD ACCESSORIES

Levers Multiply Force Allowing Smaller Cylinders.
Ram Parallel Motion (Synchronizing) By Heavy-Duty Torsion Tube.
Main Drive Motor Complete with Hydraulic Power Pack.
Fine Stroke Adjustment Rod with Limit Switches.
Long Adjustable Stroke Length with Adjustable Speed Change Point.
Three Speed Stroke Cycle with Fast Approach-Return & Slow Pressing.
Different Stroke Cycles For Set-Up Trials (Inching), Production Runs.
Pair of Front Sheet Supports Sheet While Loading.
Manual Hand Operated Back Gauge 600 MM. Long.
