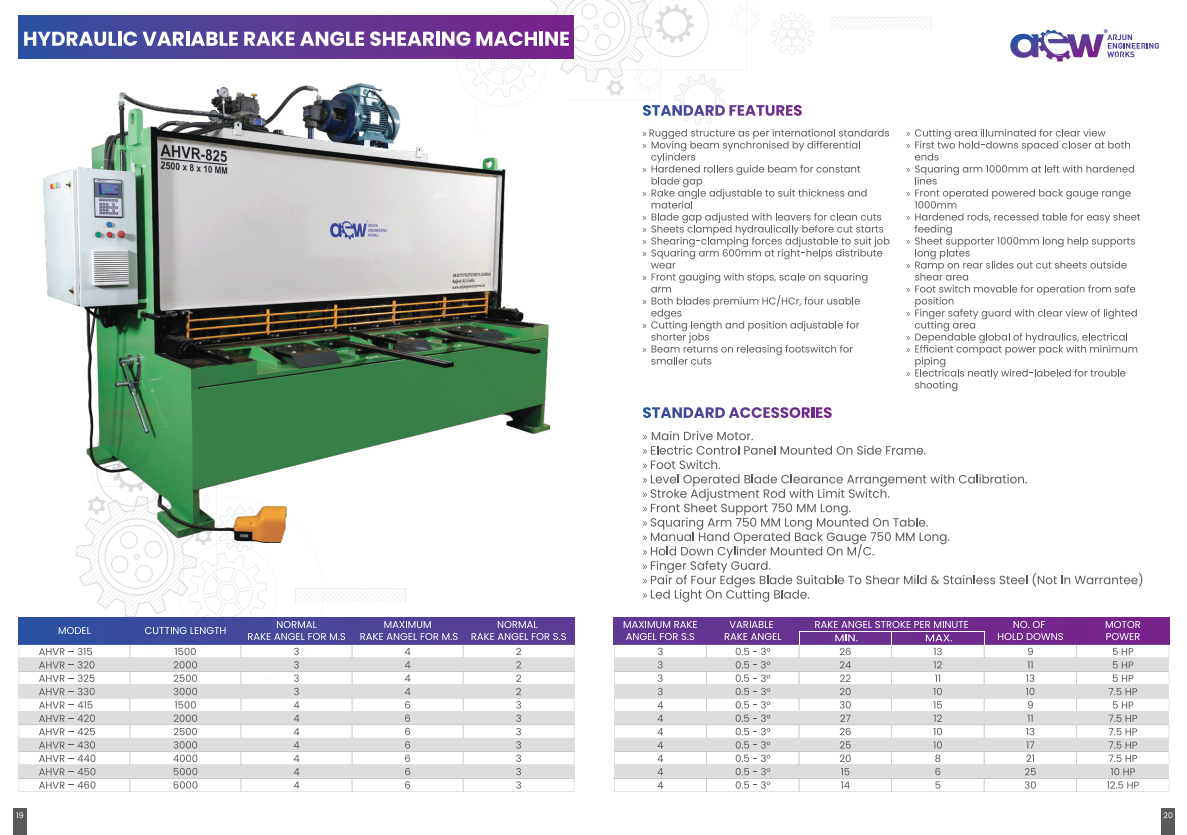

Name: Nc Hydraulic Shearing Machine
SKU: 5
Rating: 4.5 (50 reviews)

Hydraulic Shearing Machine: High-Precision Metal Cutting with Advanced Numeric Control Technology

The NC Hydraulic Shearing Machine combines cutting-edge numeric control technology with advanced hydraulic systems to deliver unmatched precision and efficiency.

Ideal for high-volume industrial cutting tasks, this machine is equipped with programmable controls that enable accurate and repeatable operations.

Its robust design ensures durability and stability, while the hydraulic mechanism guarantees smooth and powerful cutting for various sheet metal sizes and thicknesses.

With user-friendly features, enhanced safety systems, and low maintenance requirements.

The NC Hydraulic Shearing Machine is a trusted solution for industries like automotive, aerospace, and metal fabrication.

Standard Features:

Rugged structure as per international standards.
Moving beam synchronized by differential cylinders.
Hardened rollers guide beam for constant blade gap.
Rake angle adjustable to suit thickness and material.
Blade gap adjusted with levers for clean cuts.
Sheets clamped hydraulically before the cut starts.
Shearing-clamping forces adjustable to suit job.
Squaring arm (600mm) at the right helps distribute wear.
Front gauging with stops, scale on the squaring arm.
Both blades premium HC/HCr, four usable edges.

Standard Accessories:

Main Drive Motor.
Electric Control Panel Mounted on Side Frame.
Foot Switch.
Level Operated Blade Clearance Arrangement with Calibration.
Stroke Adjustment Rod with Limit Switch.
Front Sheet Support (750 mm long).
Squaring Arm (750 mm long) mounted on the table.
Manual Hand Operated Back Gauge (750 mm long).
Hold Down Cylinder Mounted on M/C.
Finger Safety Guard.
